Quantum Floodlight Medium

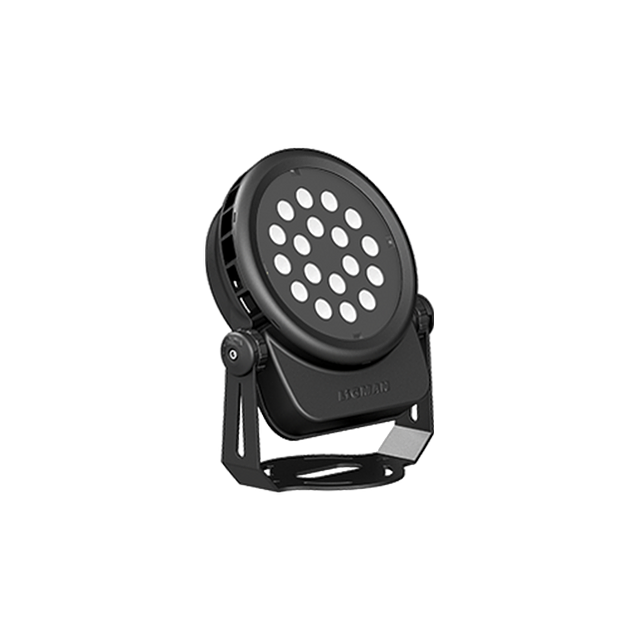

QA-50015-02.pngQuantum Floodlight Medium
a floodlight for building-facade and high-rise accent illumination
Model#: UQA-5001X
- a floodlight designed for building-facade and high-rise accent illumination with aimable beam control.
- Narrow, medium, wide, and elliptical distributions match coverage to application
- Optional anti-glare louvers refine beam control
- RGBW color-changing option for dynamic schemes
- Die-cast aluminum construction for exterior durability
- Internal waterproof driver compartment protects electrical components
Key Features
- a floodlight designed for building-facade and high-rise accent illumination with aimable beam control.
- Narrow, medium, wide, and elliptical distributions match coverage to application
- Optional anti-glare louvers refine beam control
- RGBW color-changing option for dynamic schemes
- Die-cast aluminum construction for exterior durability
- Internal waterproof driver compartment protects electrical components
BUG Rating
- B3-U0-G0
- B3-U0-G1
- B4-U0-G0
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
Circuit
- Single
Color / Finish
- Black
- Bronze
- Chestnut
- Custom
- Dark Grey
- Maple
- Oak
- Walnut
- White
Dimensions
- L: 14 In. W: 8 In. H: 17 In.
Dimming Protocol
- 0-10 V
Distribution
- Medium
- Narrow
- Very Narrow
- Very Wide
- Wide
EPA Rating
- 0.146
- 1.572
Efficacy
- 43
- 94
Lamp Source
- COB
- LED
Listings
- ETL
Lumens
- 3634
- 7175
Materials
- Aluminum
Mounting
- Clamp
Ratings & Compliance
- IK08
- IP66
- Natatorium Rated
Static LED Color
- White
Warranty
- 10 yr
Watts
- 76
- 83
Weight
- 19
