Vekter Surface Wall

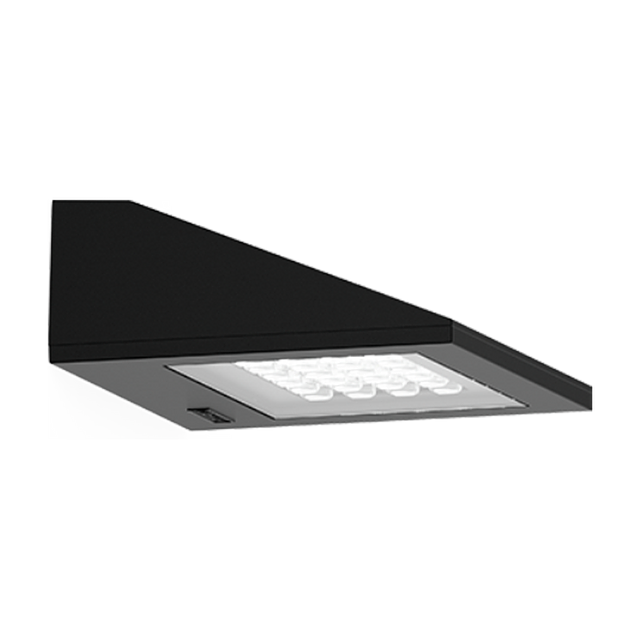

VK-30003-02.pngVekter Surface Wall
Wedge-shaped low-profile wall-mounted luminaire
Model#: UVK-3000X-XXX
- a wedge-shaped low-profile wall-mounted luminaire designed for walkway, facade, entrance, and parking-area lighting.
- Adjustable arm on select models provides precise beam aiming
- High-power LEDs with MicroVOS optics enable wider fixture spacing with uniform illumination
- Corrosion-resistant construction for exterior durability
- Mounting plate compatible with 3" and 4" octagonal junction boxes simplifies installation
Key Features
- a wedge-shaped low-profile wall-mounted luminaire designed for walkway, facade, entrance, and parking-area lighting.
- Adjustable arm on select models provides precise beam aiming
- High-power LEDs with MicroVOS optics enable wider fixture spacing with uniform illumination
- Corrosion-resistant construction for exterior durability
- Mounting plate compatible with 3" and 4" octagonal junction boxes simplifies installation
BUG Rating
- B1-U0-G1
- B1-U1-G1
- B2-U0-G0
- B2-U1-G2
- B3-U0-G0
- B3-U0-G1
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
Circuit
- Single
Color / Finish
- Black
- Bronze
- Chestnut
- Custom
- Dark Grey
- Maple
- Oak
- Walnut
- White
Dimensions
- L: 11 In. W: 10 In. H: 4 In.
Dimming Protocol
- 0-10 V
Distribution
- Medium
- Very Wide
- Wide
Efficacy
- 41
- 49
- 127
- 137
Lamp Source
- LED
Listings
- ETL
Lumens
- 1719
- 1851
- 5073
- 6879
Materials
- Aluminum
Ratings & Compliance
- DarkSky Approved
- IK08
- IP65
- MicroVOS
- Natatorium Rated
Static LED Color
- Amber
- White
Warranty
- 10 yr
Watts
- 35
- 37
- 45
- 54
Weight
- 11
Beyond the Cut Sheet
With Ligman, all standard products can be either modified beyond the cut sheet and customized without the worry of MOQs, project delays, or reliability issues. If we don't have exactly what you're looking for, we offer 'Ligman Tailor-Made' services to create the perfect luminaire for your vision!
LEARN MORE
Backed by a 10-Year Warranty
Ligman USA products are engineered for durability and performance, backed by a comprehensive 10 year warranty. This reflects our confidence in the quality of our products and our commitment to supporting our customers for years to come. You can trust that our lighting solutions will withstand the elements and deliver lasting value, season after season.
LEARN MORESimilar Products
Light Linear PT Square Surface Wall
Wall-mounted luminaire
Model#: ULI-3002X-XXX
Pittsburgh Surface Wall Large RGBW
Surface-mounted wall luminaire
Model#: UPIB-30024
Pittsburgh Surface Wall Small RGBW
Surface-mounted wall luminaire
Model#: UPIB-30004
Atlantic Straight Shade, Dome Top Surface Wall Small
Decorative wall lantern
Model#: UAA-30146-2-1
Forrey 34 Open Surface Wall
Decorative wall-mounted lantern
Model#: UFOR-30082
View All Similar Products
Vekter Collection
Vekter Spike Double Head Post-Top Large
Wedge-shaped, low-profile post-top luminaire
Model#: UVK-200XX-XXX
Vekter Extended Arm Single Post-Top
Wedge-shaped, low-profile post-top luminaire
Model#: UVK-900XX-XXX
Vekter Single Head Bollard
Bollard designed for driveway
Model#: UVK-1000X-XXX
Vekter Spike Single Head Post-Top Large
Wedge-shaped, low-profile post-top luminaire
Model#: UVK-200XX-XXX
View Entire Collection
All Luminaires Collection

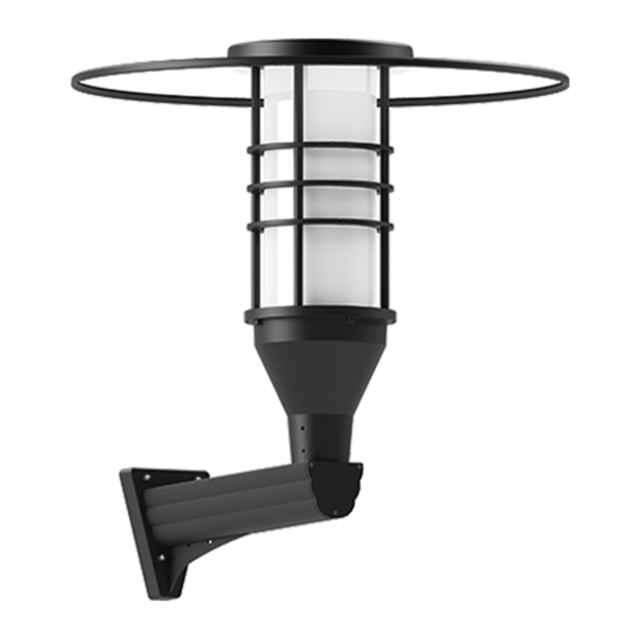

Forrey 20 Opal Surface Wall
