Abacus Square Double Bollard

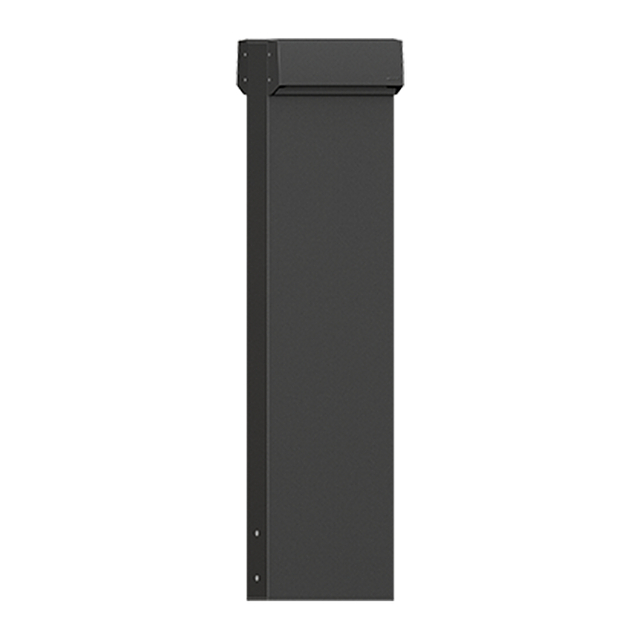

AB-10031-02.pngAbacus Square Double Bollard
Low-profile square bollard
Model#: UAB-100XX-XXX
- a low-profile square bollard designed for pedestrian walkway, park, and public-space lighting.
- Form coordinated with the Abacus wall-luminaire family for site-wide design continuity
- Compact, low-height housing for minimal sightline obstruction in landscaped settings
- Sealed, gasketed enclosure prevents water ingress
- On-board integral driver, no remote driver box
- Anchor bolts with laser-cut steel template for accurate field installation
- Three surface-mount profiles for layout flexibility
Key Features
- a low-profile square bollard designed for pedestrian walkway, park, and public-space lighting.
- Form coordinated with the Abacus wall-luminaire family for site-wide design continuity
- Compact, low-height housing for minimal sightline obstruction in landscaped settings
- Sealed, gasketed enclosure prevents water ingress
- On-board integral driver, no remote driver box
- Anchor bolts with laser-cut steel template for accurate field installation
- Three surface-mount profiles for layout flexibility
BUG Rating
- B1-U2-G1
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
Circuit
- Single
Dimensions
- L: 6 In. W: 11 In. H: 40 In.
- L: 6 In. W: 11 In. H: 20 In.
Efficacy
- 35
- 71
Lamp Source
- LED
Listings
- ETL
Lumens
- 784
- 1566
Materials
- Aluminum
Ratings & Compliance
- IK09
- IP65
- Natatorium Rated
- Turtle Safe
Shape
- Square
Static LED Color
- Amber
- White
Watts
- 22
Weight
- 18
- 23
Beyond the Cut Sheet
With Ligman, all standard products can be either modified beyond the cut sheet and customized without the worry of MOQs, project delays, or reliability issues. If we don't have exactly what you're looking for, we offer 'Ligman Tailor-Made' services to create the perfect luminaire for your vision!
LEARN MORE
Backed by a 10-Year Warranty
Ligman USA products are engineered for durability and performance, backed by a comprehensive 10 year warranty. This reflects our confidence in the quality of our products and our commitment to supporting our customers for years to come. You can trust that our lighting solutions will withstand the elements and deliver lasting value, season after season.
LEARN MOREConfigure
