Quantum Cluster Column Clamp Floodlight

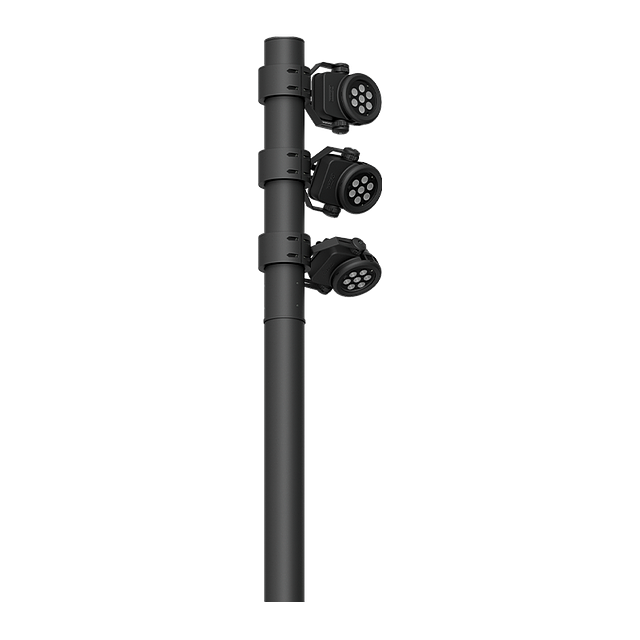

QA-21003-02.pngQuantum Cluster Column Clamp Floodlight
Column-mounted LED floodlight cluster
Model#: UQA-210XX
- a column-mounted LED floodlight cluster designed for park, facade, and high-rise accent illumination with aimable beam control.
- Narrow, medium, wide, and elliptical distributions match coverage to application
- Optional louvers or visors refine beam control
- Standard 3- or 6-fixture configuration with customizable quantity, position, wattage, and beam spread
- RGBW color-changing option for dynamic schemes
- Die-cast aluminum construction for exterior durability
- Internal waterproof driver compartment protects electrical components
Key Features
- a column-mounted LED floodlight cluster designed for park, facade, and high-rise accent illumination with aimable beam control.
- Narrow, medium, wide, and elliptical distributions match coverage to application
- Optional louvers or visors refine beam control
- Standard 3- or 6-fixture configuration with customizable quantity, position, wattage, and beam spread
- RGBW color-changing option for dynamic schemes
- Die-cast aluminum construction for exterior durability
- Internal waterproof driver compartment protects electrical components
BUG Rating
- B3-U0-G0
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
Circuit
- Single
Dimensions
- L: 6 In. H: 40 In.
Dimming Protocol
- 0-10 V
Distribution
- Medium
- Narrow
- Very Narrow
- Very Wide
- Wide
EPA Rating
- 0.057
- 0.332
- 0.614
- 3.574
Efficacy
- 93
Lamp Source
- COB
- LED
Listings
- ETL
Lumens
- 8370
- 11811
- 16740
- 23622
Materials
- Aluminum
Mounting
- Clamp
Ratings & Compliance
- IK08
- IP66
- Natatorium Rated
Static LED Color
- White
Watts
- 90
- 126
- 180
- 252
Weight
- 81
- 83
- 105
- 109
Beyond the Cut Sheet
With Ligman, all standard products can be either modified beyond the cut sheet and customized without the worry of MOQs, project delays, or reliability issues. If we don't have exactly what you're looking for, we offer 'Ligman Tailor-Made' services to create the perfect luminaire for your vision!
LEARN MORE
Backed by a 10-Year Warranty
Ligman USA products are engineered for durability and performance, backed by a comprehensive 10 year warranty. This reflects our confidence in the quality of our products and our commitment to supporting our customers for years to come. You can trust that our lighting solutions will withstand the elements and deliver lasting value, season after season.
LEARN MOREConfigure
