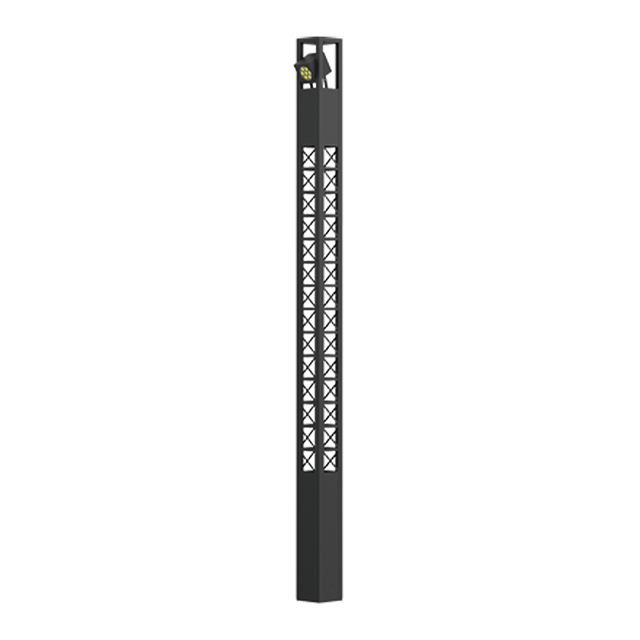

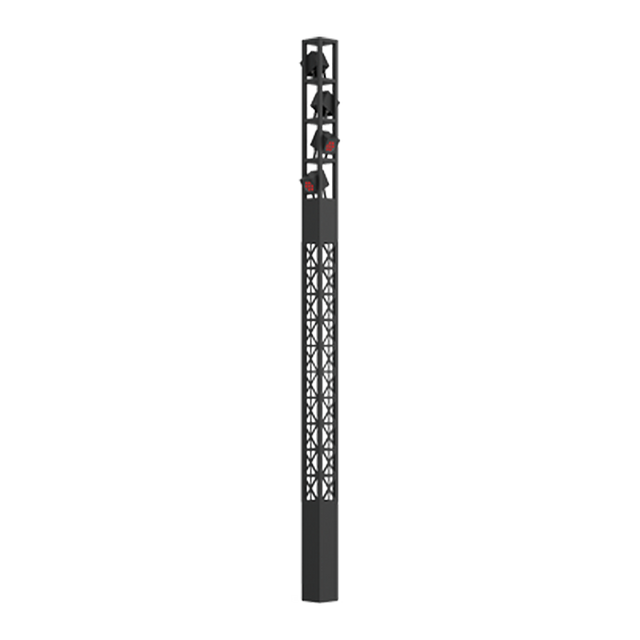

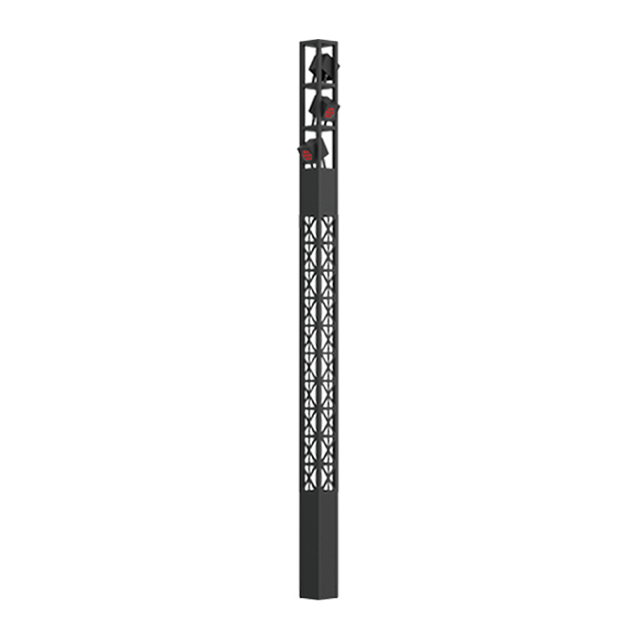

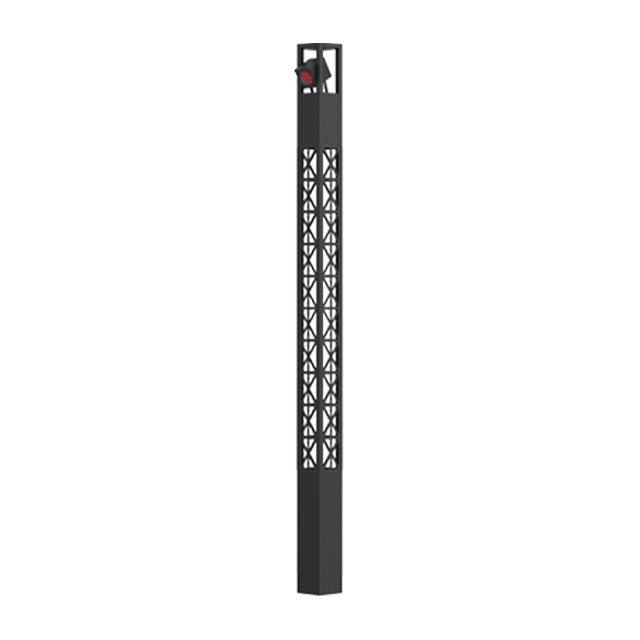

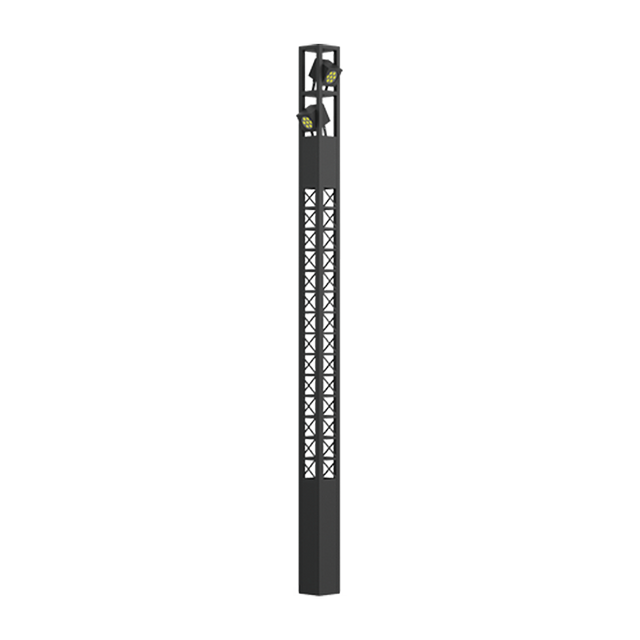

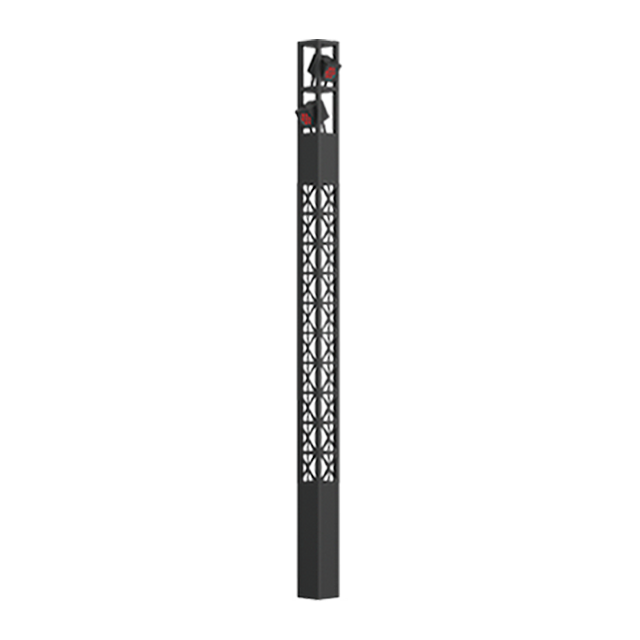

Vancouver 9-inch Lattice Column-Floodlight RGBW

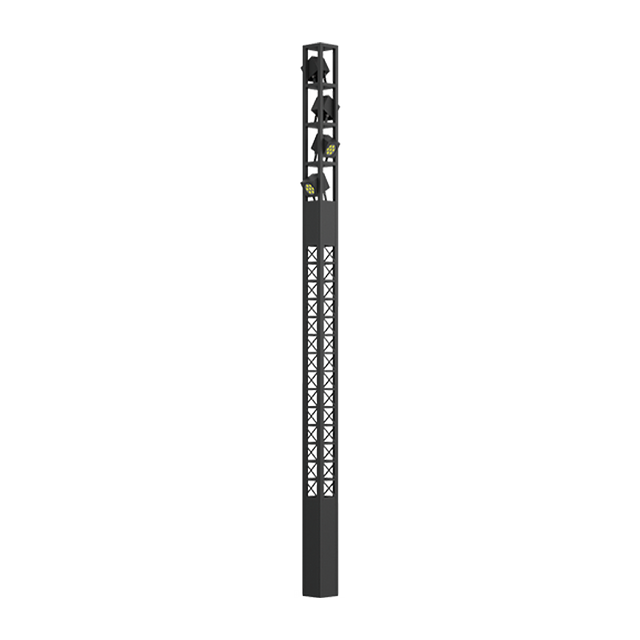

VA-20144-02.pngVancouver 9-inch Lattice Column-Floodlight RGBW
Column with top-mounted floodlights
Model#: UVA-201XX
- A column with top-mounted floodlights designed for pedestrian-area, plaza, building-surround, shopping-center, square, and park lighting.
- Mounted floodlights allow for multi application highlights
- RGBW color-changing option for dynamic schemes
- Custom heights available to match site requirements
- Corrosion-resistant construction for exterior durability
- Waterproof top-mounted internal driver compartment protects electrical components from water and dust
Key Features
- A column with top-mounted floodlights designed for pedestrian-area, plaza, building-surround, shopping-center, square, and park lighting.
- Mounted floodlights allow for multi application highlights
- RGBW color-changing option for dynamic schemes
- Custom heights available to match site requirements
- Corrosion-resistant construction for exterior durability
- Waterproof top-mounted internal driver compartment protects electrical components from water and dust
BUG Rating
- B1-U0-G0
CCT
- 3000K
- 4000K
- 6500K
Circuit
- Single
Color / Finish
- Black
- Bronze
- Chestnut
- Custom
- Dark Grey
- Maple
- Oak
- Walnut
- White
Diameter
- 9
Dimensions
- L: 10 In. W: 10 In.
- L: 10 In. W: 10 In. H: 175 In.
- L: 10 In. W: 10 In. H: 161 In.
- L: 10 In. W: 10 In. H: 190 In.
Dimming Protocol
- 0-10 V
Distribution
- Elliptical
- Flood
- Medium
- Narrow
Dynamic LED Color
- RGBW
EPA Rating
- 0.977
- 1.066
- 1.154
- 1.243
Efficacy
- 35
Lighting
- Lit
Listings
- ETL
Lumens
- 2316
- 3474
- 4632
- 5790
Materials
- Aluminum
Ratings & Compliance
- IK08
- IP66
- Natatorium Rated
Warranty
- 10 yr
Watts
- 66
- 99
- 132
- 165
Weight
- 129
- 131
- 132
- 138
- 140
- 142
- 148
- 149
- 151
- 157
- 158
- 160
Beyond the Cut Sheet
With Ligman, all standard products can be either modified beyond the cut sheet and customized without the worry of MOQs, project delays, or reliability issues. If we don't have exactly what you're looking for, we offer 'Ligman Tailor-Made' services to create the perfect luminaire for your vision!
LEARN MORE
Backed by a 10-Year Warranty
Ligman USA products are engineered for durability and performance, backed by a comprehensive 10 year warranty. This reflects our confidence in the quality of our products and our commitment to supporting our customers for years to come. You can trust that our lighting solutions will withstand the elements and deliver lasting value, season after season.
LEARN MOREInspiration
Similar Products

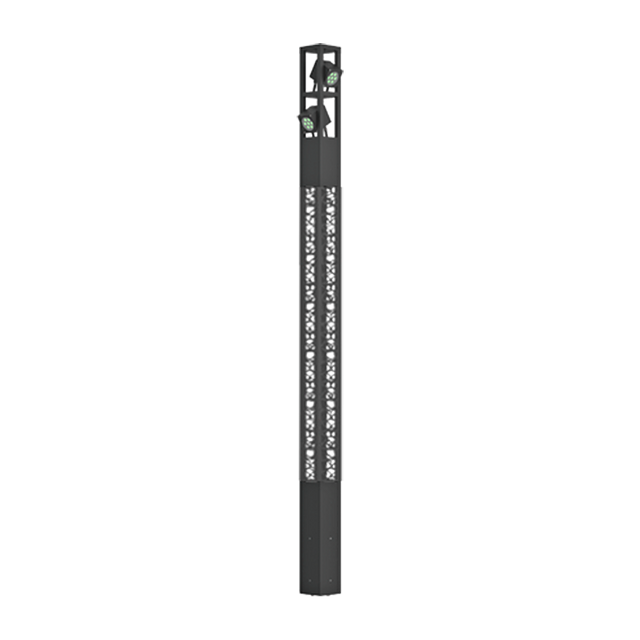

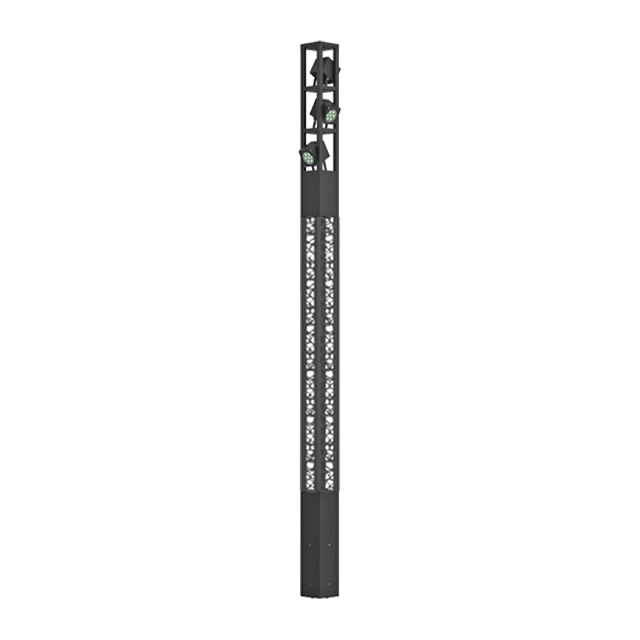

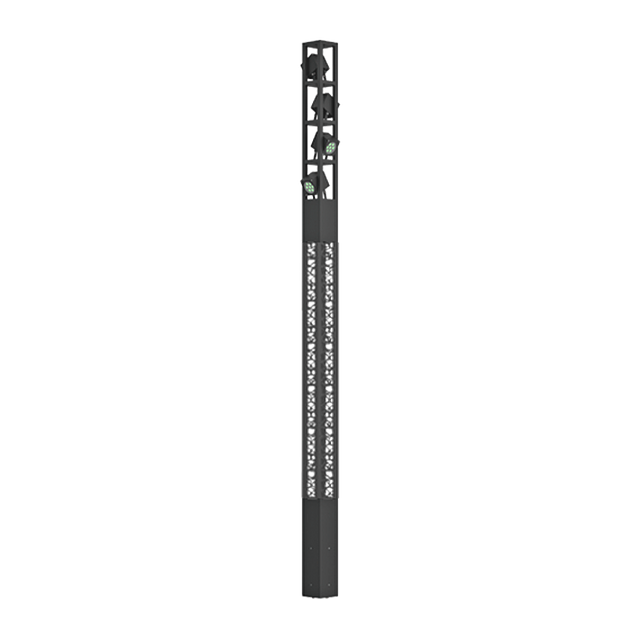

Vancouver 9-inch Open Column-Floodlight RGBW
Column with top-mounted RGBW floodlights
Model#: UVA-2011X
View All Similar Products
Column - Floodlight Collection
Benton 9-inch Column-Floodlight
Column with mounted floodlights
Model#: UBE-2002X
Arizona 9-inch Column-Floodlight
Column with mounted floodlights
Model#: UAR-20973-21131
Vancouver 9-inch Open Column-Floodlight RGBW
Column with top-mounted RGBW floodlights
Model#: UVA-2011X
View Entire Collection
Vancouver Collection

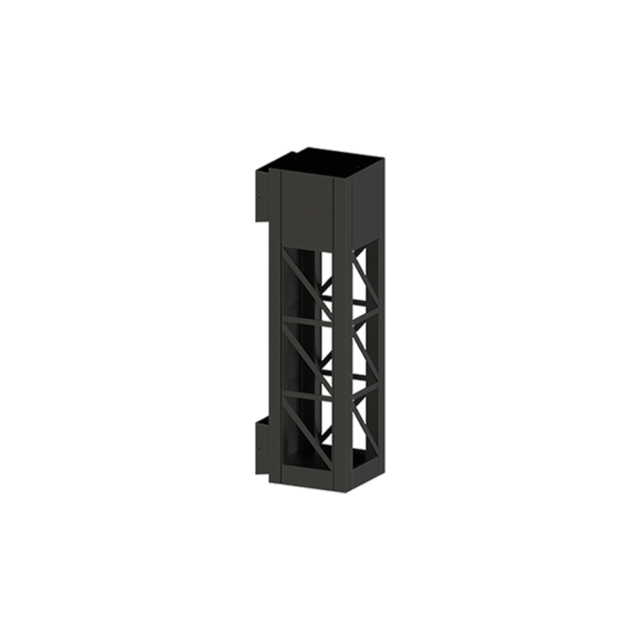

Vancouver 6-inch Lattice Surface Wall
Square wall-mounted luminaire
Model#: UVA-300XX

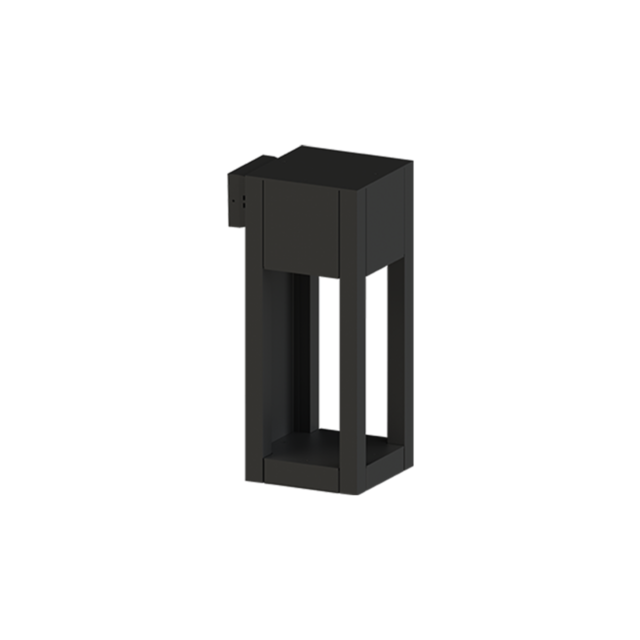

Vancouver 6-inch Open Surface Wall
Square wall-mounted luminaire
Model#: UVA-30001
Vancouver 9-inch Lattice Surface Wall
Square wall-mounted luminaire
Model#: UVA-300XX
View Entire Collection
All Luminaires Collection
Kios 9-inch Round Flush Frame Inground
Shallow round in-ground uplight
Model#: UKI-60XXX-XXX
Light Linear PT Square Surface Wall
Wall-mounted luminaire
Model#: ULI-3002X-XXX

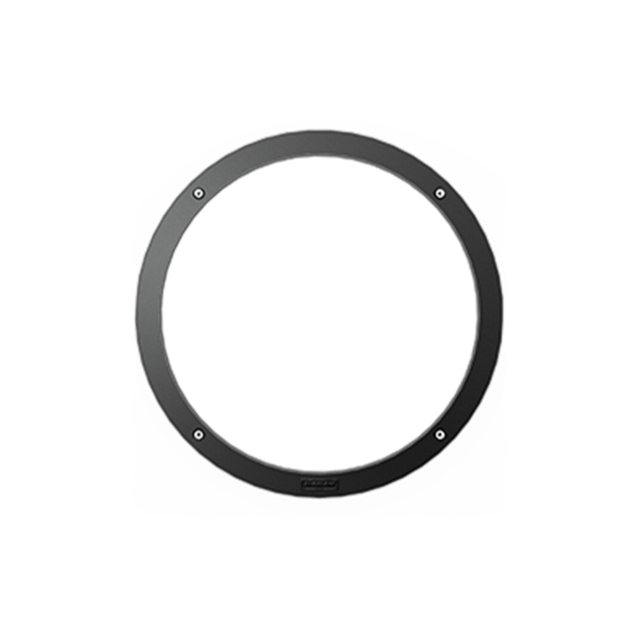

Sandy 14-inch Surface Wall
