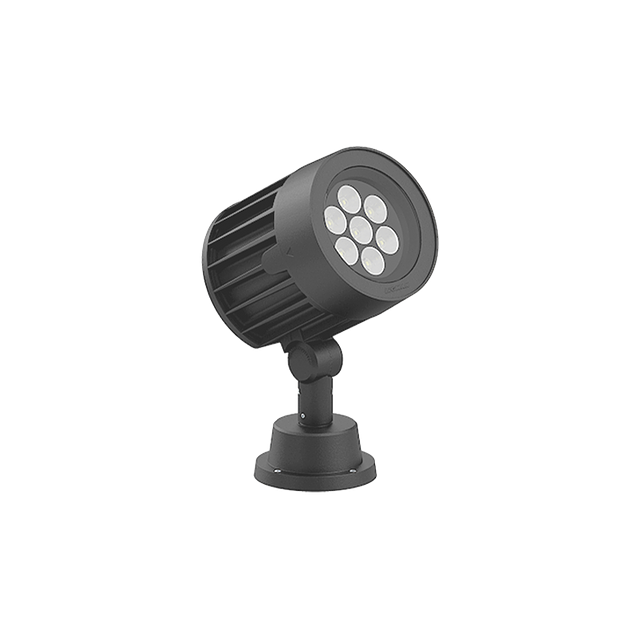

Odessa 7.5-inch Threaded & Knuckle Floodlight Large
OD-50163-02.pngOdessa 7.5-inch Threaded & Knuckle Floodlight Large
Floodlight designed for recreational-area
Model#: UOD-501XX
- a floodlight designed for recreational-area, public-space, and architectural illumination with aimable beam control.
- Narrow, medium, wide, and very-wide distributions match coverage to application
- Optional ground spike, visors, louvres, and linear spread lenses refine beam control
- 2700–4000K CCT options
- Aim-and-lock mechanism provides precise feature highlighting and security illumination
- Die-cast aluminum construction for exterior durability
- On-board integral driver, no remote driver box
Key Features
- a floodlight designed for recreational-area, public-space, and architectural illumination with aimable beam control.
- Narrow, medium, wide, and very-wide distributions match coverage to application
- Optional ground spike, visors, louvres, and linear spread lenses refine beam control
- 2700–4000K CCT options
- Aim-and-lock mechanism provides precise feature highlighting and security illumination
- Die-cast aluminum construction for exterior durability
- On-board integral driver, no remote driver box
BUG Rating
- B3-U0-G0
- B3-U0-G1
- B4-U0-G0
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
Circuit
- Single
Color / Finish
- Black
- Bronze
- Chestnut
- Custom
- Dark Grey
- Maple
- Oak
- Walnut
- White
Diameter
- 7
Dimensions
- W: 10 In. H: 14 In.
- W: 8 In. H: 14 In.
Dimming Protocol
- 0-10 V
EPA Rating
- 0.049
- 0.057
- 0.527
- 0.614
Efficacy
- 97
- 102
- 124
- 129
Lamp Source
- COB
- LED
Listings
- ETL
Lumens
- 4607
- 5843
- 6983
- 8686
Mounting
- Threaded Knuckle
- Yoke
Ratings & Compliance
- IK08
- IP66
- Natatorium Rated
- Turtle Safe
Static LED Color
- Amber
- White
Warranty
- 10 yr
Watts
- 45
- 54
- 60
- 70
Weight
- 14
- 15
Beyond the Cut Sheet
With Ligman, all standard products can be either modified beyond the cut sheet and customized without the worry of MOQs, project delays, or reliability issues. If we don't have exactly what you're looking for, we offer 'Ligman Tailor-Made' services to create the perfect luminaire for your vision!
LEARN MORE
Backed by a 10-Year Warranty
Ligman USA products are engineered for durability and performance, backed by a comprehensive 10 year warranty. This reflects our confidence in the quality of our products and our commitment to supporting our customers for years to come. You can trust that our lighting solutions will withstand the elements and deliver lasting value, season after season.
