Quantum Single Head Street & Area

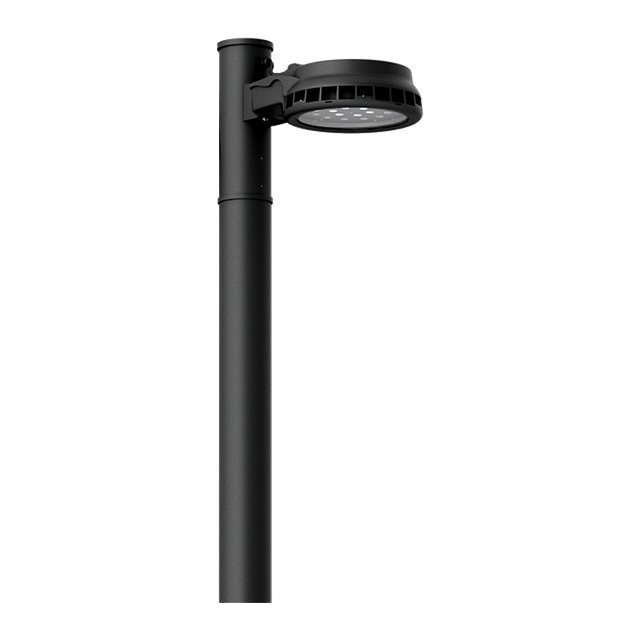

QA-21025-02.pngQuantum Single Head Street & Area
Pole-mounted area luminaire
Model#: UQA-2102X-XXX
- a pole-mounted area luminaire designed for street, parking-area, and civic-plaza lighting with symmetrical and Type II, III, and IV distributions.
- Symmetrical and Type II, III, and IV optics provide application-specific distribution
- Tilt adjustment up to 80 degrees enables onsite distribution optimization
- 2700–4000K CCT options
- RGBW color-changing option for dynamic schemes
- Die-cast aluminum construction for exterior durability
- Internal waterproof driver compartment protects electrical components
Key Features
- a pole-mounted area luminaire designed for street, parking-area, and civic-plaza lighting with symmetrical and Type II, III, and IV distributions.
- Symmetrical and Type II, III, and IV optics provide application-specific distribution
- Tilt adjustment up to 80 degrees enables onsite distribution optimization
- 2700–4000K CCT options
- RGBW color-changing option for dynamic schemes
- Die-cast aluminum construction for exterior durability
- Internal waterproof driver compartment protects electrical components
BUG Rating
- B1-U0-G1
- B2-U0-G2
- B3-U0-G0
- B3-U0-G1
- B4-U0-G0
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
Circuit
- Single
Color / Finish
- Black
- Bronze
- Chestnut
- Custom
- Dark Grey
- Maple
- Oak
- Walnut
- White
Dimensions
- L: 23 In. H: 14 In.
Dimming Protocol
- 0-10 V
Distribution
- Type II
- Type III
- Type IV
EPA Rating
- 0.097
- 1.044
Efficacy
- 94
- 95
- 101
Lamp Source
- LED
Listings
- ETL
Lumens
- 7175
- 8031
- 10580
Materials
- Aluminum
Ratings & Compliance
- DarkSky Approved
- IK08
- IP66
- Natatorium Rated
- Turtle Safe
Static LED Color
- Amber
- White
Warranty
- 10 yr
Watts
- 76
- 84
- 104
Weight
- 24
Beyond the Cut Sheet
With Ligman, all standard products can be either modified beyond the cut sheet and customized without the worry of MOQs, project delays, or reliability issues. If we don't have exactly what you're looking for, we offer 'Ligman Tailor-Made' services to create the perfect luminaire for your vision!
LEARN MORE
Backed by a 10-Year Warranty
Ligman USA products are engineered for durability and performance, backed by a comprehensive 10 year warranty. This reflects our confidence in the quality of our products and our commitment to supporting our customers for years to come. You can trust that our lighting solutions will withstand the elements and deliver lasting value, season after season.
LEARN MOREConfigure
