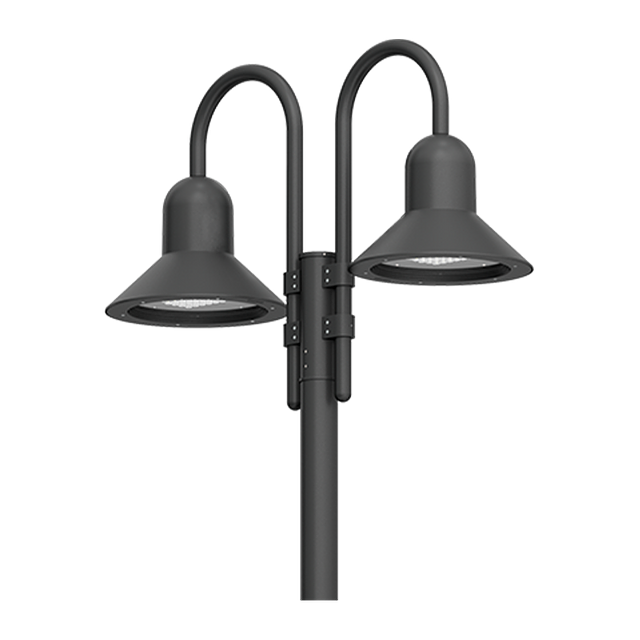

Hamilton Sheperds Crook Double Post-Top
HAM-20032-02.pngHamilton Sheperds Crook Double Post-Top
Post-top luminaire
Model#: UHAM-2003X-XXX
- a post-top luminaire designed for parking lot, walkway, pedestrian-area, plaza, park, garden, and building-perimeter lighting.
- Form coordinated with the Hamilton Surface Wall
- 2700–4000K CCT options
- Marine-grade aluminum construction for coastal and corrosive environments
- Single- or twin-head configuration in straight-arm or shepherd's-crook styles provides design flexibility
- Factory-prewired power cord to the handhole simplifies installation
Key Features
- a post-top luminaire designed for parking lot, walkway, pedestrian-area, plaza, park, garden, and building-perimeter lighting.
- Form coordinated with the Hamilton Surface Wall
- 2700–4000K CCT options
- Marine-grade aluminum construction for coastal and corrosive environments
- Single- or twin-head configuration in straight-arm or shepherd's-crook styles provides design flexibility
- Factory-prewired power cord to the handhole simplifies installation
BUG Rating
- B1-U0-G1
- B2-U0-G0
- B2-U0-G2
- B3-U0-G0
- B3-U0-G1
- B4-U0-G0
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
Circuit
- Single
Color / Finish
- Black
- Bronze
- Chestnut
- Custom
- Dark Grey
- Maple
- Oak
- Walnut
- White
Dimensions
- L: 54 In. H: 15 In.
- L: 56 In. H: 38 In.
Dimming Protocol
- 0-10 V
Distribution
- Type II
- Type III
- Type IV
EPA Rating
- 0.393
Efficacy
- 39
- 45
- 117
- 119
Lamp Source
- LED
Listings
- ETL
Lumens
- 2798
- 6574
- 12484
- 17898
Materials
- Aluminum
Ratings & Compliance
- DarkSky Approved
- IK07
- IP66
- MicroVOS
- Natatorium Rated
- Turtle Safe
Static LED Color
- Amber
- White
Warranty
- 10 yr
Watts
- 70
- 106
- 144
- 150
Weight
- 56
- 58
Beyond the Cut Sheet
With Ligman, all standard products can be either modified beyond the cut sheet and customized without the worry of MOQs, project delays, or reliability issues. If we don't have exactly what you're looking for, we offer 'Ligman Tailor-Made' services to create the perfect luminaire for your vision!
LEARN MORE
Backed by a 10-Year Warranty
Ligman USA products are engineered for durability and performance, backed by a comprehensive 10 year warranty. This reflects our confidence in the quality of our products and our commitment to supporting our customers for years to come. You can trust that our lighting solutions will withstand the elements and deliver lasting value, season after season.
LEARN MORESimilar Products
Hamilton Sheperds Crook Single Post-Top
Post-top luminaire
Model#: UHAM-2002X-XXX
View All Similar Products
Hamilton Collection
Hamilton Sheperds Crook Single Post-Top
Post-top luminaire
Model#: UHAM-2002X-XXX
Hamilton Sheperds Crook Surface Wall
Decorative wall lantern
Model#: UHAM-3001X-XXX
View Entire Collection
All Luminaires Collection
Veranda 10-inch Pillar
Low-level surface-mounted pillar luminaire
Model#: UVR-7031X
Light Linear PT Square Surface Wall
Wall-mounted luminaire
Model#: ULI-3002X-XXX

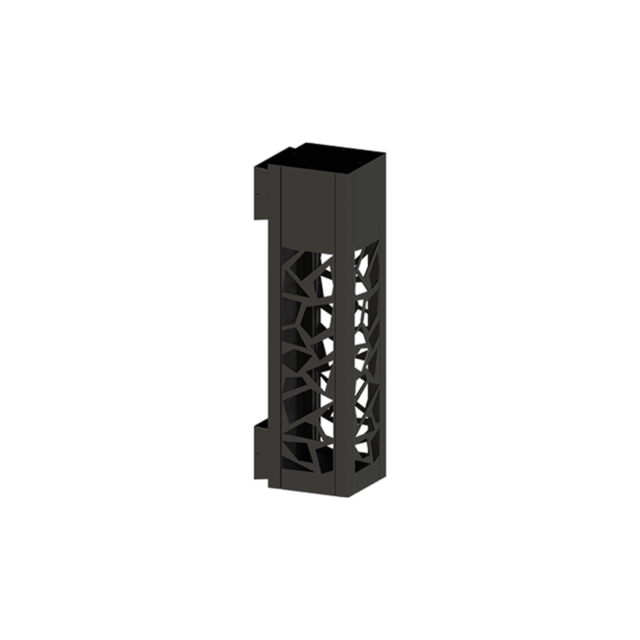

Vancouver 9-inch Lattice Surface Wall RGBW
