Capsule Surface Wall

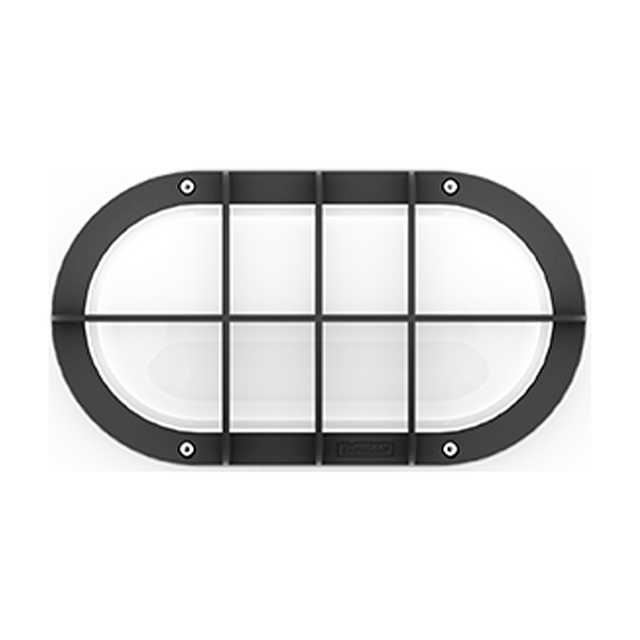

CA-30596-02.pngCapsule Surface Wall
Capsule-shaped bulkhead luminaire
Model#: UCA-30XXX-XXX
- a capsule-shaped bulkhead luminaire designed for indoor and outdoor general illumination.
- Optional visor on the Capsule Wall Shield eliminates uplight
- Optional grille attachments provide a defined visual appearance
- Corrosion-resistant construction for exterior durability
- Available with integrated motion sensor
- Corrosion-resistant construction for exterior durability
Key Features
- a capsule-shaped bulkhead luminaire designed for indoor and outdoor general illumination.
- Optional visor on the Capsule Wall Shield eliminates uplight
- Optional grille attachments provide a defined visual appearance
- Corrosion-resistant construction for exterior durability
- Available with integrated motion sensor
- Corrosion-resistant construction for exterior durability
BUG Rating
- B1-U3-G1
CCT
- Amber
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
Circuit
- Single
Color / Finish
- Black
- Bronze
- Chestnut
- Custom
- Dark Grey
- Maple
- Oak
- Walnut
- White
Controls Options
- Motion Sensor
Dimensions
- L: 14 In. W: 8 In. H: 2 In.
Efficacy
- 87
- 95
- 106
Lamp Source
- LED
Listings
- ETL
Lumens
- 1313
- 1427
- 1597
Materials
- Aluminum
Ratings & Compliance
- IK10
- IP65
- Natatorium Rated
Static LED Color
- White
Warranty
- 10 yr
Watts
- 15
- 22
Weight
- 5
- 6
