Billund Street & Area LargeBillund Street & Area Large
Pole-mounted area luminaire
Model#: UBIU-90021-XXX
- a pole-mounted area luminaire designed for roadway, parking lot, exhibition-area, service-station, and truck-stop lighting with high spacing-to-mounting-height ratios.
- MicroVOS Type II, III, IV, and ME asymmetrical optics provide application-specific distribution
- Combining and/or rotating multiple MicroVOS optics allows for creation of custom dsitributions
- On-board dimmable driver, no remote driver box
- Die-cast aluminum construction for exterior durability
Key Features
- a pole-mounted area luminaire designed for roadway, parking lot, exhibition-area, service-station, and truck-stop lighting with high spacing-to-mounting-height ratios.
- MicroVOS Type II, III, IV, and ME asymmetrical optics provide application-specific distribution
- Combining and/or rotating multiple MicroVOS optics allows for creation of custom dsitributions
- On-board dimmable driver, no remote driver box
- Die-cast aluminum construction for exterior durability
BUG Rating
- B3-U0-G3
- B4-U0-G1
CCT
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 80
Circuit
- Single
Color / Finish
- Black
- Bronze
- Chestnut
- Custom
- Dark Grey
- Maple
- Oak
- Walnut
- White
Dimensions
- L: 38 In. W: 18 In. H: 6 In.
Dimming Protocol
- 0-10 V
Distribution
- Type I
- Type II
- Type III
- Type IV
- Type V
EPA Rating
- 0.087
- 0.936
Efficacy
- 151
- 160
Lamp Source
- LED
Listings
- ETL
Lumens
- 22192
- 26426
- 28908
Materials
- Aluminum
Ratings & Compliance
- IK09
- IP66
- Natatorium Rated
Static LED Color
- Amber
- White
Warranty
- 10 yr
Watts
- 138
- 174
- 191
Weight
- 32
Beyond the Cut Sheet
With Ligman, all standard products can be either modified beyond the cut sheet and customized without the worry of MOQs, project delays, or reliability issues. If we don't have exactly what you're looking for, we offer 'Ligman Tailor-Made' services to create the perfect luminaire for your vision!
LEARN MORE
Backed by a 10-Year Warranty
Ligman USA products are engineered for durability and performance, backed by a comprehensive 10 year warranty. This reflects our confidence in the quality of our products and our commitment to supporting our customers for years to come. You can trust that our lighting solutions will withstand the elements and deliver lasting value, season after season.
LEARN MOREConfigure
Similar Products
PowerMission Solar Street & Area
Pole-mounted area luminaire
Model#: P029-GP041-SO-XX
Quantum Double Head Street & Area RGBW
Pole-mounted area luminaire
Model#: UQA-21035
Billund Street & Area Small
Pole-mounted area luminaire
Model#: UBIU-90001-XXX

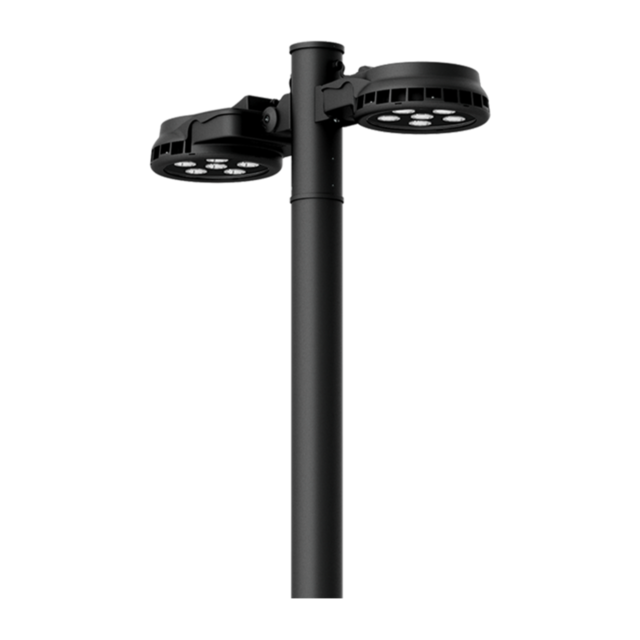

Quantum Double Head Street & Area
Pole-mounted area luminaire
Model#: UQA-2103X-XXX
View All Similar Products
Billund Collection
Billund Street & Area Medium
Pole-mounted area luminaire
Model#: UBIU-90011-XXX
Billund Street & Area Small
Pole-mounted area luminaire
Model#: UBIU-90001-XXX
View Entire Collection
All Luminaires Collection
Gino Rectangular Direct/Indirect Surface Wall
Small rectangular wall-mounted luminaire
Model#: UGI-316XX-XXX
Smith Square Column-Illuminated
Square straight aluminum pole
Model#: USM-21141

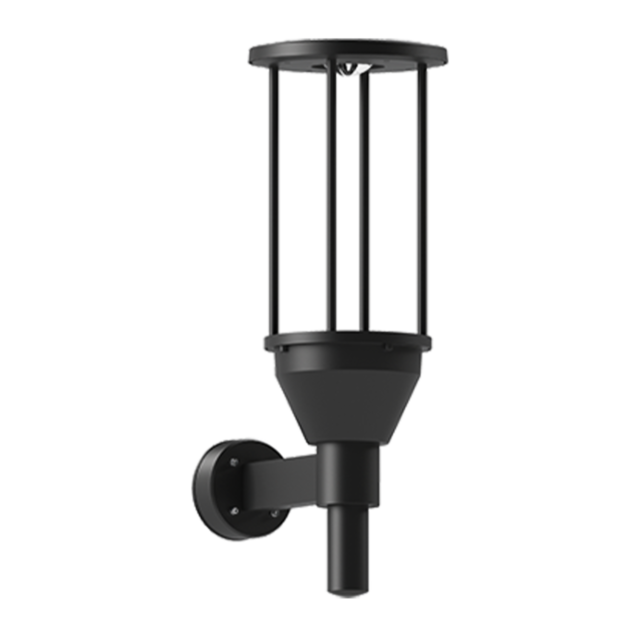

Forrey 23 Open Surface Wall
Decorative wall-mounted lantern
Model#: UFOR-30061

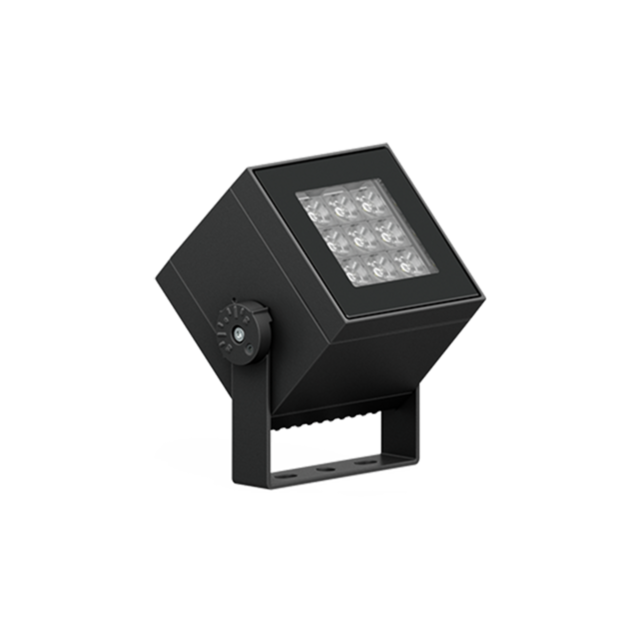

Lador Floodlight Medium RGBW
